[BUG][TGL-008] periodically zeros in DSM captured wave file #3317

Describe the bug
sof-tgl-nocodec.zip

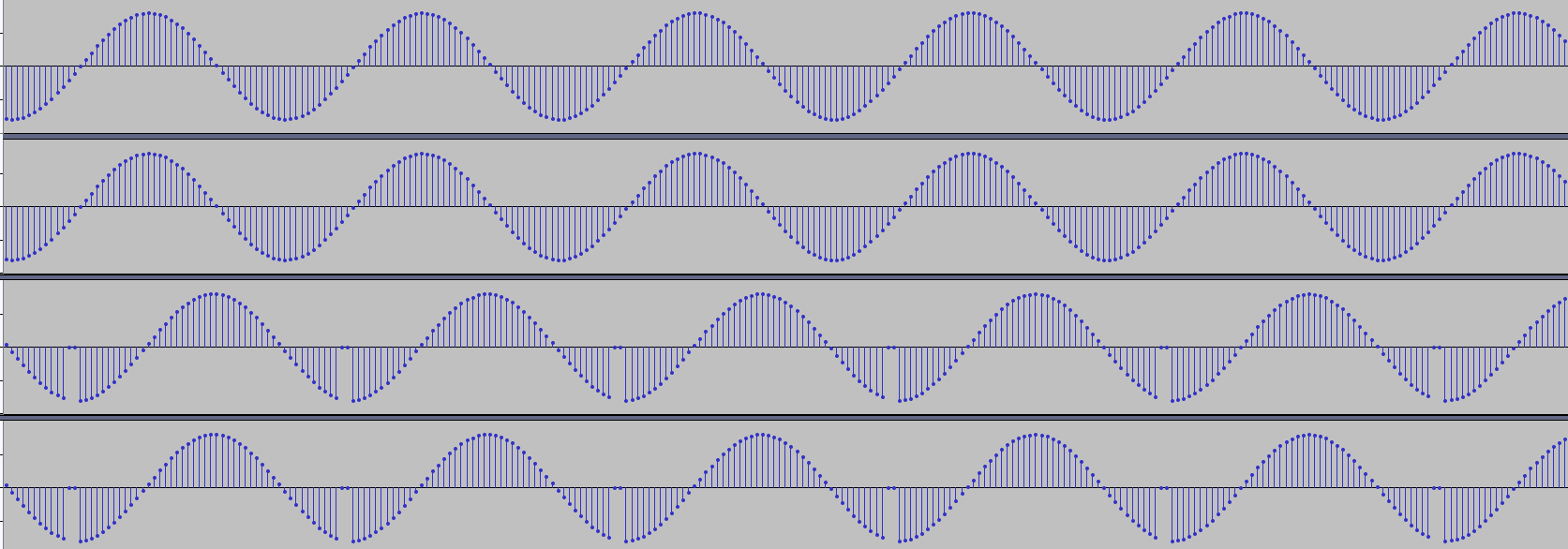

With the nocodec topology attached, which is generated from #3212, run test case https://github.com/thesofproject/sof-test/blob/master/test-case/check-smart-amplifier.sh, when case failed, check the recorded wave under /tmp/, periodically zero in the wave file. see below.

Note: The test case did nothing but play sine wave through DSM playback pipeline, and record wave from DSM capture pipeline, and then do binary comparison.

[Check the picture in a bigger window]

To Reproduce

1. clone sof-test repo: git clone https://github.com/thesofproject/sof-test
2. install dependencies: sudo apt install python3-numpy python3-scipy
3. put sof-tgl.ldc in /etc/sof/
4. run check-smart-amplifier.sh -l 50
5. when case failed, check wave file /tmp/recorded_tmp_wave_S16.wav

Reproduction Rate
4/100, not very high

Environment

1. Branch name and commit hash of the 2 repositories: sof (firmware/topology) and linux (kernel driver).
   • Kernel: {topic/sof-dev 69d2199b}
   • SOF: {releases/tgl/v8.0 d4e8548}
2. Name of the topology file
   • Topology: {sof-tgl-nocodec-ci.tplg, attached}
3. Name of the platform(s) on which the bug is observed.
   • Platform: {TGL_RVP_NOCODEC}

Recorded Wave
recorded_tmp_wave_S16.zip
