skip the test on Echo Reference pipeline by keqiaozhang · Pull Request #871 · thesofproject/sof-test

keqiaozhang · 2022-03-01T07:37:04Z

Skip the Echo Reference pipeline test in multiple-pause-resume and multiple-pipeline.

XiaoyunWu6666 · 2022-03-01T08:02:36Z


 tplg=${OPT_VAL['t']}
-func_pipeline_export "$tplg" "type:any"
+func_pipeline_export "$tplg" "type:any & ~cap_name:Smart Amplifier Playback 2,Echo Reference Capture 3"


are we going to skip the combinations of pipeline 2 and other pipelines

I am wondering whether it will be better to skip the combination of pipeline 2 and pipeline 3 when constructing pipeline_combine_lst

If yes , the filter "type:any & smart_amp" can help us to get all pipelines that are using smart_amp

Yes, we can only skip the combination of smart_amp pipeline, but I wonder if such a test would make sense.
eg. check the echo reference capture pipeline with other normal playback pipelines, this is not a reasonable use case.

plbossart · 2022-03-01T17:37:40Z


 tplg=${OPT_VAL['t']}
-func_pipeline_export "$tplg" "type:any"
+func_pipeline_export "$tplg" "type:any & ~smart_amp"


if you are going to filter something, it should be the echo reference. That's a clear case of a useless test. pause on playback makes a lot more sense.

Agree, let only skip the Echo Reference pipeline and keep the Smart Amp pipeline in the test.

marc-hb · 2022-03-02T17:58:17Z

        dlogi "Testing: $pcm [$dev]"

-        "${APP_LST[$1]}" -D "$dev" -c "$channel" -r "$rate" -f "$fmt" "${DEV_LST[$1]}" -q &
+        "${APP_LST[${1%% *}]}" -D "$dev" -c "$channel" -r "$rate" -f "$fmt" "${DEV_LST[${1%% *}]}" -q &


Good idea but this is really too cryptic, it took me several minutes to understand what this does. Please use more English like this instead:

# args: $1: playback or capture # $2: optional filter func_run_pipeline_with_type() { local direction="$1" local opt_filter if [ -n "$2" ]; then opt_filter="& $2"; fi ... func_pipeline_export "$tplg" "type:$direction $opt_filter" ... "${APP_LST[$direction]}" -D "$dev" -c "$channel" -r "$rate" -f "$fmt" "${DEV_LST[$direction]}" -q & ... } func_run_pipeline_with_type 'capture' '~pcm:Amplifier Reference'

Thanks Marc. it's simple and easy to understand. I have pushed a new version.

@plbossart

Thanks, the code style looks good to me. @plbossart can you please approve the logic?

plbossart · 2022-03-03T17:44:23Z


 tplg=${OPT_VAL['t']}
-func_pipeline_export "$tplg" "type:any"
+func_pipeline_export "$tplg" "type:any & ~pcm:Amplifier Reference"


I would go one step further and remove 'Amplifier'.

We've seen cases where we talk about 'Echo Reference'.

@plbossart , so you mean that we should remove both smart amplifier pipeline and echo reference pipeline form the test?

"amplifier reference' and 'echo reference' are the same thing, aren't they?

I meant use ~pcm:Reference

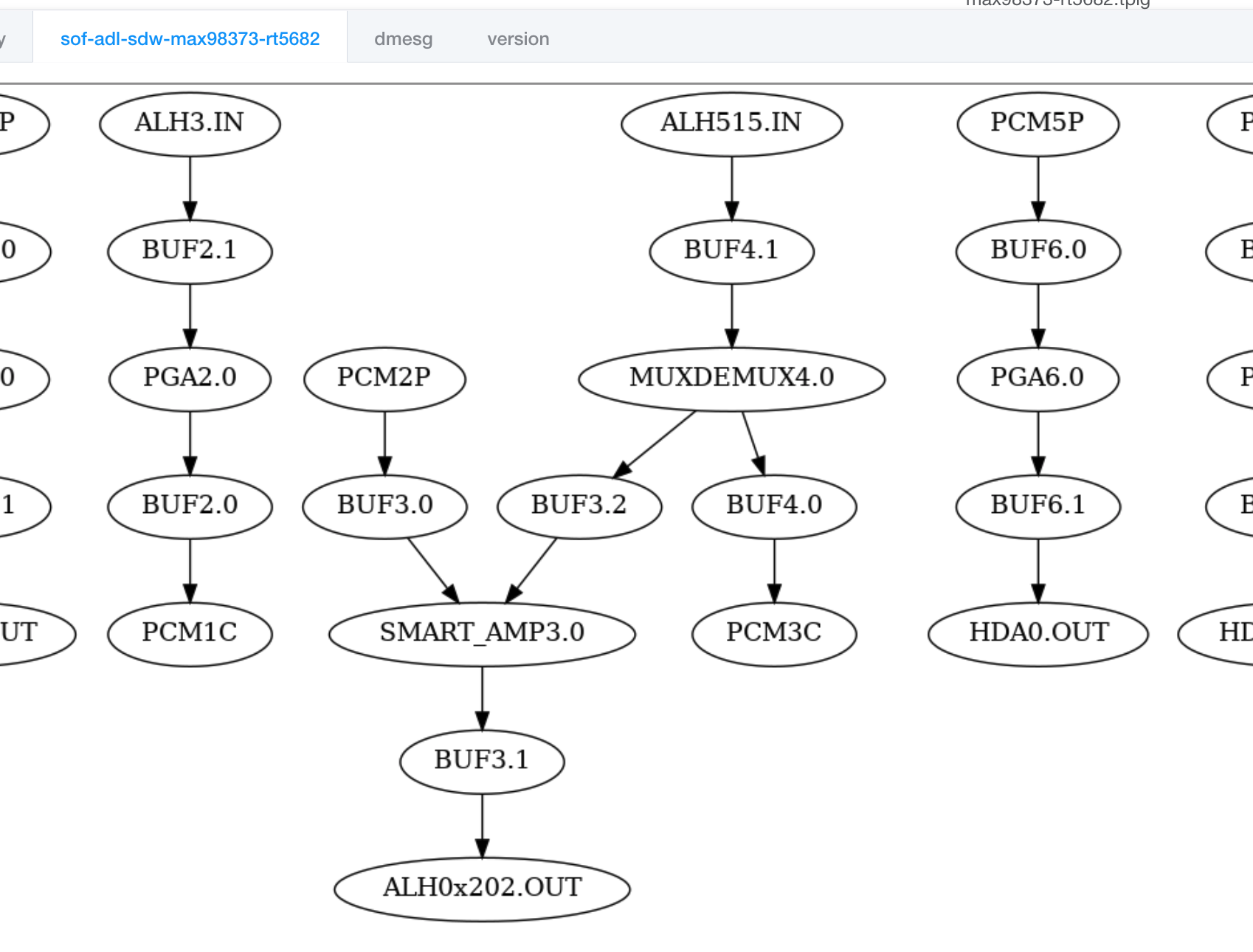

here is the output of these 2 pipelines parsed by sof-tplgreader.py:

pcm=Speaker;id=2;type=playback;cap_name=Smart Amplifier Playback 2;fmts=S16_LE S24_LE S32_LE;fmt=S16_LE;rate_min=48000;rate_max=48000;ch_min=2;ch_max=2;rate=48000;channel=2;dev=hw:0,2;snd=/dev/snd/pcmC0D2p;smart_amp=SMART_AMP3.0;

pcm=Amplifier Reference;id=3;type=capture;cap_name=Echo Reference Capture 3;fmts=S16_LE S24_LE S32_LE;fmt=S16_LE;rate_min=48000;rate_max=48000;ch_min=2;ch_max=2;rate=48000;channel=2;dev=hw:0,3;snd=/dev/snd/pcmC0D3c;smart_amp=SMART_AMP3.0;

if we want to skip them all, we can use ~smart_amp

marc-hb · 2022-03-04T04:58:47Z

keqiaozhang · 2022-03-04T06:21:43Z

I have updated my PR to skip both Smart Amplifier playback pipeline and Echo Reference capture pipeline in the tests.

plbossart · 2022-03-04T14:15:01Z

I have updated my PR to skip both Smart Amplifier playback pipeline and Echo Reference capture pipeline in the tests.

Have you tried skipping ~Reference only as I mentioned above. I don't think it's necessary to skip all tests.

keqiaozhang · 2022-03-07T05:49:59Z

I have updated my PR to skip both Smart Amplifier playback pipeline and Echo Reference capture pipeline in the tests.

Have you tried skipping ~Reference only as I mentioned above. I don't think it's necessary to skip all tests.

~pcm:Reference and ~pcm:Amplifier Reference are same, these all skip the Echo Reference capture pipeline but keep the Smart Amplifer playback pipeline(speaker) in the tests. if that's want you want, we can also use ~cap_name:Echo Reference Capture to avoid the misunderstanding. So which one do you prefer? The ’sof-tplgreader.py‘ output of this pipeline:

pcm=Amplifier Reference;id=3;type=capture;cap_name=Echo Reference Capture 3;fmts=S16_LE S24_LE S32_LE;fmt=S16_LE;rate_min=48000;rate_max=48000;ch_min=2;ch_max=2;rate=48000;channel=2;dev=hw:0,3;snd=/dev/snd/pcmC0D3c;smart_amp=SMART_AMP3.0;

plbossart · 2022-03-07T15:55:14Z

@keqiaozhang I have no preference, as long as you keep testing the playback path I am happy.

…line Smart Amp playback pipeline and Echo Reference capture pipeline are interdependent, so random pause/release 1 or 2 of them will cause an invalid bug #4434. This patch filters out the Echo Reference capture pipeline for the pause/resume test, it's not a valid use case. Signed-off-by: Keqiao Zhang <keqiao.zhang@intel.com>

In this case, if we test all capture pipelines at same time, but capture pipeline count is less than requested count defined by -c option, playback pipeline will be started to ensure requested number of pipelines are running in parallel. Considering this scenario, the capture pipeline count is less than requested count and the tplg contains both Smart Amp pipeline and Echo reference pipeline, if the Echo reference pipeline start first and Smart Amp pipeline start next, this will cause the ipc tx times out. This patch skips the Echo reference pipeline to avoid such case Signed-off-by: Keqiao Zhang <keqiao.zhang@intel.com>

keqiaozhang · 2022-03-08T13:06:48Z

~pcm:Amplifier Reference

@plbossart , I have updated the PR to skip the echo reference capture pipeline and keep the smart amplifier playback pipeline in the tests.

marc-hb · 2022-03-09T06:04:42Z

This made PIPELINE_COUNT out of sync, fixed submitted by @miRoox in #875
