STOP and PAUSE in pipeline task context - #4960
Conversation
|
Both CI failures https://sof-ci.01.org/sofpr/PR4960/build11004/devicetest/?model=CML_RVP_SDW&testcase=check-suspend-resume-with-playback-5 and https://sof-ci.01.org/sofpr/PR4960/build11004/devicetest/?model=TGLH_RVP_HDA&testcase=check-suspend-resume-with-capture-5 are timeouts in suspend-resume tests, seem unrelated |
|
Looks this doesn't fix the multi-core xrun issues according to test plan result 7973, but good news is that looks there is no significant regression with it. I will need some explain about how the start/stop in the pipeline task context work, especially for cases that there are pipeline list connected with this kind of triggering. Will check detail next week. |
|

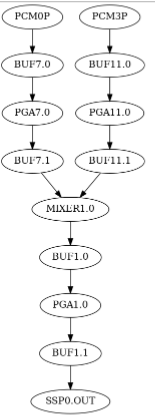

Hi @lyakh do you have clear logic or documentation to demonstrate of how the trigger start/stop sequence looks like with your design, e.g. for below 0,0 and 0,3 PCM devices: We have 3 pipelines and 2 PCM devices here, when the trigger start/stop of PCM 0,0 and 0,3 IPCs came from the Linux host side, how those pipelines 1, 7, 11 are started/stopped? |
There was a problem hiding this comment.
@lgirdwood sorry, could you explain? I don't see what's wrong with this - if one of components returns PATH_STOP we abort trigger processing?
Currently -EINVAL is used to indicate an invalid trigger code, requiring no handling. Use an explicit new COMP_TRIGGER_NO_ACTION value for that for better clarity. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
struct ll_schedule_domain::registered[] is only used inside ll_schedule_domain.h and only to update itself, it's exclusively self-serving. Remove it. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
Currently there are two ways to stop scheduling an LL task: by cancelling it from outside and by returning SOF_TASK_STATE_COMPLETED from the task .run() function. In both cases the task will stop being rescheduled, but in the latter case it will stay on the list of the tasks, waiting to be cancelled. This means that even for those tasks schedule_task_cancel() still has to be called. This is however inconvenient because in some cases there is no suitable context to cancel that task from. E.g. this will be the case with pipeline tasks when we switch them over to handling STOP and PAUSE commands from the task itself. This patch restores the original behaviour when tasks are removed from the list after completion, without waiting for cancellation. For this we extend the calling convention of domain_unregister() to be used with the task parameter equal to NULL when freeing the scheduler. DMA domains preserve their current behaviour: they ignore calls with task == NULL. The timer domain however now uses this call to release the timer interrupt. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
A recent commit moved START and RESUME trigger processing to the pipeline task for timer domain pipelines. This patch does the same for STOP and PAUSE. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
Improve readability by moving a block of code into a function. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
Fix trace messages after moving them into different functions. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
Move a static function closer to where it is used. Signed-off-by: Guennadi Liakhovetski <guennadi.liakhovetski@linux.intel.com>
|
CI: a single suspend-resume device test https://sof-ci.01.org/sofpr/PR4960/build11067/devicetest/?model=CML_RVP_SDW&testcase=check-suspend-resume-with-playback-5 failed with a timeout, QB seems to have a problem with their ICL device - same failure as in #4983 |
Resurrecting the reverted #4724 - hopefully no regressions this time. Tested with an addition of 7141762 to pass multiple pipeline and multiple pause-resume on CNL with a multicore HDA topology.
