Regression: volume change doesn't work #717
Description

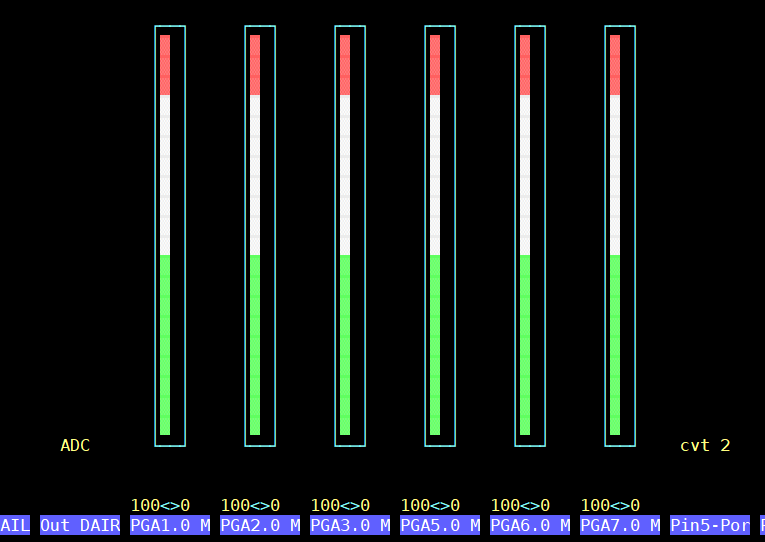

First, the default value of all right channels are zero. see the following screenshot.
Second, the volume cannot be changed.
trace error:
0 2 IPC 4567233.489583 210.260422 apl-ipc.c:114 ipc: msg rx -> 0x50010000
0 2 IPC 4567239.635417 6.145833 handler.c:794 ipc: hdr 0x50010000 tx (108) > rx (92)
0 2 IPC 4567243.385417 3.750000 handler.c:796 ipc: comp 9 -> cmd 0
0 2 VOLUME 4567249.947917 6.562500 volume.c:432 volume_cmd()
0 2 VOLUME 4567254.010417 4.062500 volume.c:326 volume_ctrl_set_cmd(), SOF_CTRL_CMD_VOLUME, cdata->comp_id = 9
0 2 VOLUME 4567257.864583 3.854167 volume.c:331 volume_ctrl_set_cmd(), SOF_CTRL_CMD_VOLUME, channel = 536884292, value = 2047
0 1 VOLUME 4567261.145833 3.281250 volume.c:339 volume_ctrl_set_cmd() error: SOF_CTRL_CMD_VOLUME, invalid i = 536884292
0 2 VOLUME 4567266.406250 5.260417 volume.c:331 volume_ctrl_set_cmd(), SOF_CTRL_CMD_VOLUME, channel = 1, value = 0
0 2 IPC 4602111.250000 34844.843750 apl-ipc.c:114 ipc: msg rx -> 0x50020000
0 2 IPC 4602117.395833 6.145833 handler.c:794 ipc: hdr 0x50020000 tx (108) > rx (92)
0 2 IPC 4602121.145833 3.750000 handler.c:796 ipc: comp 9 -> cmd 0
0 2 VOLUME 4602127.552083 6.406250 volume.c:432 volume_cmd()
0 2 VOLUME 4602131.614583 4.062500 volume.c:403 volume_ctrl_get_cmd(), SOF_CTRL_CMD_VOLUME / SOF_CTRL_CMD_SWITCH, cdata->comp_id = 9
0 2 VOLUME 4602135.156250 3.541667 volume.c:410 volume_ctrl_set_cmd(), channel = 0, value = 65536
0 2 VOLUME 4602138.489583 3.333333 volume.c:410 volume_ctrl_set_cmd(), channel = 1, value = 0
0 2 IPC 4602306.145833 167.656250 apl-ipc.c:114 ipc: msg rx -> 0x50010000
0 2 IPC 4602312.031250 5.885417 handler.c:794 ipc: hdr 0x50010000 tx (108) > rx (92)
0 2 IPC 4602315.885417 3.854167 handler.c:796 ipc: comp 9 -> cmd 0
0 2 VOLUME 4602322.395833 6.510417 volume.c:432 volume_cmd()
0 2 VOLUME 4602326.458333 4.062500 volume.c:326 volume_ctrl_set_cmd(), SOF_CTRL_CMD_VOLUME, cdata->comp_id = 9
0 2 VOLUME 4602330.260417 3.802083 volume.c:331 volume_ctrl_set_cmd(), SOF_CTRL_CMD_VOLUME, channel = 536884292, value = 2047
0 1 VOLUME 4602333.697917 3.437500 volume.c:339 volume_ctrl_set_cmd() error: SOF_CTRL_CMD_VOLUME, invalid i = 536884292
How to reproduce:
- alsamixer -c 0
- change the PGA* items.
Tested with:
- FW: SOF master/78f13ed + PR Fix ipc timeout caused due to incorrect task scheduling #709
- Kernel: topic/cros-sofv4.14-rebase/40fae8a
- topology: SOF master/78f13ed
Activity
dabekjakub commentedon Dec 14, 2018
fixed in #721
keqiaozhang commentedon Dec 17, 2018
@dabekjakub
This issue has basically been fixed, but 2 display issues need to be addressed:
Besides, the errors are still there in trace:
0 1 VOLUME 105545.885417 3.593750 volume.c:339 volume_ctrl_set_cmd() error: SOF_CTRL_CMD_VOLUME, invalid i = 536884268
Tested with：
sof-glk-005-drop-stable:75410581
wenqingfu commentedon Dec 17, 2018
Should this be a new bug?
keqiaozhang commentedon Dec 18, 2018
Confirmed that this issue is fixed on latest GLK005 branch, let's close this bug.
Fixed by commit 23da63.
