[BUG] IPC timed out when multiple-pause-resume on BDW_WSB_RT286 #4859
Description
Describe the bug
in inner daily 7241 testcase=multiple-pause-resume-25
ipc timed out when multiple-pause-resume on BDW_WSB_RT286
To Reproduce
TPLG=/lib/firmware/intel/sof-tplg/sof-bdw-rt286.tplg ~/sof-test/test-case/multiple-pause-resume.sh -r 25
Environment
Start Time: 2021-10-08 21:20:17 UTC
End Time: 2021-10-08 23:58:28 UTC
Kernel Branch: topic/sof-dev
Kernel Commit: bd1219a2
SOF Branch: main
SOF Commit: b039018
Screenshots or console output
[dmesg]
ipc timed out when TRIG_START
[ 1375.015212] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: stream dir 1, posn mailbox offset is 649804
[ 1375.030744] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: open stream 1 dir 0
[ 1375.030751] kernel: sof-audio-acpi-intel-bdw INT3438:00: period min 192 max 16384 bytes
[ 1375.030755] kernel: sof-audio-acpi-intel-bdw INT3438:00: period count 2 max 16
[ 1375.030758] kernel: sof-audio-acpi-intel-bdw INT3438:00: buffer max 65536 bytes
[ 1375.031120] kernel: sof-audio-acpi-intel-bdw INT3438:00: rate_min: 48000 rate_max: 48000
[ 1375.031120] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: trigger stream 0 dir 1 cmd 1
[ 1375.031129] kernel: sof-audio-acpi-intel-bdw INT3438:00: channels_min: 2 channels_max: 2
[ 1375.031142] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx: 0x60040000: GLB_STREAM_MSG: TRIG_START
[ 1375.031329] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx succeeded: 0x60040000: GLB_STREAM_MSG: TRIG_START
[ 1375.033325] kernel: sof-audio-acpi-intel-bdw INT3438:00: DAI config 0 matches pcm hw params
[ 1375.033332] kernel: sof-audio-acpi-intel-bdw INT3438:00: DAI config 0 matches pcm hw params
[ 1375.033337] kernel: sof-audio-acpi-intel-bdw INT3438:00: rate_min: 48000 rate_max: 48000
[ 1375.033343] kernel: sof-audio-acpi-intel-bdw INT3438:00: channels_min: 2 channels_max: 2
[ 1375.033840] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: hw params stream 1 dir 0
[ 1375.033847] kernel: sof-audio-acpi-intel-bdw INT3438:00: generating page table for 00000000cdf0e9a7 size 0x3e80 pages 4
[ 1375.033865] kernel: sof-audio-acpi-intel-bdw INT3438:00: stream_tag 0
[ 1375.033911] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx: 0x60010000: GLB_STREAM_MSG: PCM_PARAMS
[ 1375.034448] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx succeeded: 0x60010000: GLB_STREAM_MSG: PCM_PARAMS
[ 1375.034456] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: stream dir 0, posn mailbox offset is 649728
[ 1375.035725] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: trigger stream 1 dir 0 cmd 1
[ 1375.035736] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx: 0x60040000: GLB_STREAM_MSG: TRIG_START
[ 1375.537460] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx timed out for 0x60040000 (msg/reply size: 12/12)
[ 1375.537491] kernel: sof-audio-acpi-intel-bdw INT3438:00: preventing DSP entering D3 state to preserve context
[ 1375.537501] kernel: sof-audio-acpi-intel-bdw INT3438:00: ------------[ DSP dump start ]------------
[ 1375.537511] kernel: sof-audio-acpi-intel-bdw INT3438:00: fw_state: SOF_FW_BOOT_COMPLETE (5)
[ 1375.537604] kernel: sof-audio-acpi-intel-bdw INT3438:00: unexpected fault 0x00000000 trace 0x80000000
[ 1375.537626] kernel: sof-audio-acpi-intel-bdw INT3438:00: error: ipc host -> DSP: pending yes complete no raw 0x80000000
[ 1375.537645] kernel: sof-audio-acpi-intel-bdw INT3438:00: error: mask host: pending no complete no raw 0x7fff0000
[ 1375.537663] kernel: sof-audio-acpi-intel-bdw INT3438:00: error: ipc DSP -> host: pending no complete no raw 0x00000000
[ 1375.537682] kernel: sof-audio-acpi-intel-bdw INT3438:00: error: mask DSP: pending no complete no raw 0x7f9e0000
[ 1375.537701] kernel: sof-audio-acpi-intel-bdw INT3438:00: ------------[ DSP dump end ]------------
[ 1375.537733] kernel: sof-audio-acpi-intel-bdw INT3438:00: ASoC: error at soc_component_trigger on INT3438:00: -110
[ 1375.537754] kernel: sof-audio-acpi-intel-bdw INT3438:00: error: trace IO error
[ 1375.537758] kernel: Media Playback 1: ASoC: trigger FE cmd: 1 failed: -110
[ 1375.537777] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: trigger stream 1 dir 0 cmd 0
[ 1375.537798] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx: 0x60050000: GLB_STREAM_MSG: TRIG_STOP
[ 1375.538809] kernel: sof-audio-acpi-intel-bdw INT3438:00: pcm: trigger stream 0 dir 1 cmd 0
[ 1376.042350] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx timed out for 0x60050000 (msg/reply size: 12/12)
[ 1376.042362] kernel: sof-audio-acpi-intel-bdw INT3438:00: preventing DSP entering D3 state to preserve context
[ 1376.042372] kernel: sof-audio-acpi-intel-bdw INT3438:00: ASoC: error at soc_component_trigger on INT3438:00: -110
[ 1376.042378] kernel: Media Playback 1: ASoC: trigger FE cmd: 0 failed: -110
[ 1376.042399] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx: 0x60050000: GLB_STREAM_MSG: TRIG_STOP
[ 1376.545406] kernel: sof-audio-acpi-intel-bdw INT3438:00: ipc tx timed out for 0x60050000 (msg/reply size: 12/12)
[ 1376.545448] kernel: sof-audio-acpi-intel-bdw INT3438:00: preventing DSP entering D3 state to preserve context
[ 1376.545462] kernel: sof-audio-acpi-intel-bdw INT3438:00: ASoC: error at soc_component_trigger on INT3438:00: -110
[ 1376.545478] kernel: Low Latency: ASoC: trigger FE cmd: 0 failed: -110
Activity
XiaoyunWu6666 commentedon Oct 12, 2021
will close it if not happened again by Oct 15
marc-hb commentedon Oct 12, 2021
I think you meant
TPLG=/lib/firmware/intel/sof-tplg/sof-bdw-rt286.tplglgirdwood commentedon Oct 13, 2021
@XiaoyunWu6666 can you tag any new issue that uses a mixer, mux or demux in the test pipeline (feel free to create a new label for this). We need to track these so these issues can be resolved. I know BDW uses mixer in some of it's PCMs but not sure if this failure is due to the mixer pipeline. Thanks !
XiaoyunWu6666 commentedon Oct 18, 2021
Close it now since it hasn't happened since its first appearance
marc-hb commentedon Feb 11, 2022
Happened in https://sof-ci.01.org/softestpr/PR856/build978/devicetest/?model=BDW_WSB_RT286&testcase=multiple-pipeline-capture
Looks like bugs don't fix themselves...
P1 because it affects PR testing
Also in Feb 11 daily 10146?model=BDW_WSB_RT286&testcase=multiple-pipeline-capture-50
keqiaozhang commentedon Feb 15, 2022
From the history, we only caught this issue once 4 months ago. So I think we can close this issue. will reopen it if we run to this issue again.
marc-hb commentedon Feb 15, 2022
You seem to have missed my previous comment.
I just searched the test results and multiple pipelines tests are failing on BDW_WSB_RT286 on a regular basis.
Please either reduce the priority or close as "wontfix" but don't close as "this almost never happens" (?) because it does happen.
Recent test failures:
mengdonglin commentedon Feb 22, 2022
Lower the priority to P2 as it's on BDW, but not P3 as it seems to be a generic issue of mixer.
@XiaoyunWu6666 @marc-hb Do you still observe this issue after PR #5374 was merged?
XiaoyunWu6666 commentedon Feb 22, 2022
Actually the ipc timed out was observed in CI daily tests only once ....
@marc-hb the recent test failures you post look are actually #3170 ?
marc-hb commentedon Feb 22, 2022
Sorry, I may have confused the two failures. I've been staring at too many logs lately.
XiaoyunWu6666 commentedon Mar 14, 2022

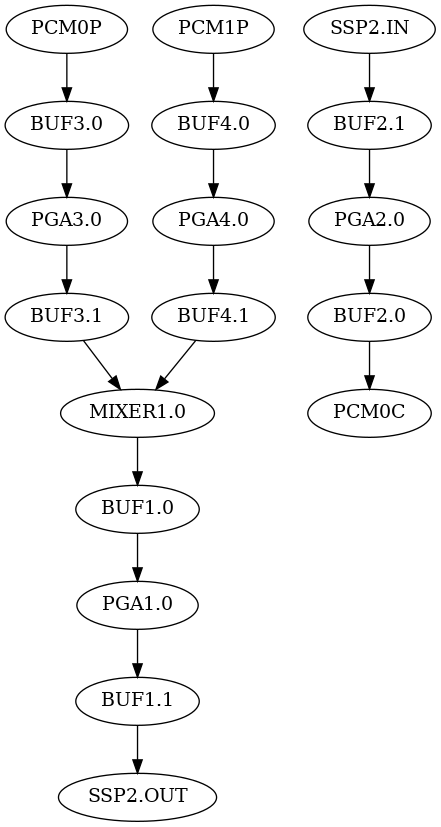

this also happen on BYT_MB_NOCODECwhen multiple-pipeline-capture
in inner daily test result 10992
IO error happened when start hw0:0 PCM to capture first and start hw0:0 PCM and hw0:1 PCM Deep Buffer to aplay
[dmesg]
mengdonglin commentedon Jun 21, 2022
Move BDW and BYT platform to maintenance mode and SOF v2.2 will be the last upstream release with support for this platform. There will be no more bug fixing effort on this platform.
