[BUG] memory allocation failure in mux/demux pipeline #3724

Describe the bug
When I tried to make smart amp work on CML stradale. I found the memory allocation failed.
This bug is a regression. And it is introduced by commit: 5d763d6

To Reproduce
Use the update topology which include mux/demux pipelines, it will fail to initialize the audio module.

Reproduction Rate
100%

Expected behavior
audio initialized successfully

Impact
audio doesn't work

Environment

1. Branch name and commit hash of the 2 repositories: sof (firmware/topology) and linux (kernel driver).
   • Kernel: latest kernel on https://github.com/thesofproject/linux/tree/topic/sof-dev with patch [RFC] SoundWire: add rt1308 feedback linux#2514
   • SOF: https://github.com/thesofproject/sof/tree/master a2ce9d7
2. Name of the topology file
   • Topology: my local toplogy. If needed, I can upload this topology.
3. Name of the platform(s) on which the bug is observed.
   • Platform: CML, TGL (not test on other platforms, but suppose other platform have the same issue)

Screenshots or console output
dmesg:
[ 1.814256] sof-audio-pci 0000:00:1f.3: ipc tx: 0x30010000: GLB_TPLG_MSG: COMP_NEW
[ 1.814403] sof-audio-pci 0000:00:1f.3: error: ipc error for 0x30010000 size 20
[ 1.814404] sof-audio-pci 0000:00:1f.3: error: create process failed
[ 1.814405] sof-audio-pci 0000:00:1f.3: error: process loading failed
[ 1.814406] sof-audio-pci 0000:00:1f.3: error: DSP failed to add widget id 0 type 33 name : MUXDEMUX10.1 stream none reply 0
[ 1.814408] sof-audio-pci 0000:00:1f.3: ASoC: failed to load widget MUXDEMUX10.1
[ 1.814409] sof-audio-pci 0000:00:1f.3: ASoC: topology: could not load header: -22
[ 1.814419] sof-audio-pci 0000:00:1f.3: error: tplg component load failed -22
[ 1.814423] sof-audio-pci 0000:00:1f.3: error: failed to load DSP topology -22
[ 1.814424] sof-audio-pci 0000:00:1f.3: ASoC: error at snd_soc_component_probe on 0000:00:1f.3: -22
[ 1.814425] sof-audio-pci 0000:00:1f.3: ASoC: failed to probe component -22
[ 1.814437] sof_sdw sof_sdw: ASoC: failed to instantiate card -22
[ 1.814505] sof_sdw sof_sdw: snd_soc_register_card failed -22

sof-logger:
[ 2251877.656250] ( 10.729167) c0 mux src/audio/mux/mux.c:168 mux_new()
[ 2251910.208333] ( 32.552082) c0 mux 10.43 src/audio/mux/mux.c:100 mux_set_values()
[ 2252090.520833] ( 180.312500) c0 component src/audio/component.c:130 comp new 0x1fffa390U type 18 id 10.44
[ 2252101.458333] ( 10.937500) c0 mux src/audio/mux/mux.c:168 mux_new()
[ 2252126.927083] ( 25.468750) c0 demux src/audio/component.c:135 ERROR comp_new(): unable to create the new component
[ 2252138.802083] ( 11.875000) c0 ipc src/ipc/ipc.c:186 ERROR ipc_comp_new(): component cd = NULL
[ 2252151.562500] ( 12.760417) c0 ipc src/ipc/handler.c:1131 ERROR ipc: pipe 10 comp 44 creation failed -22

more log please check the attachment.

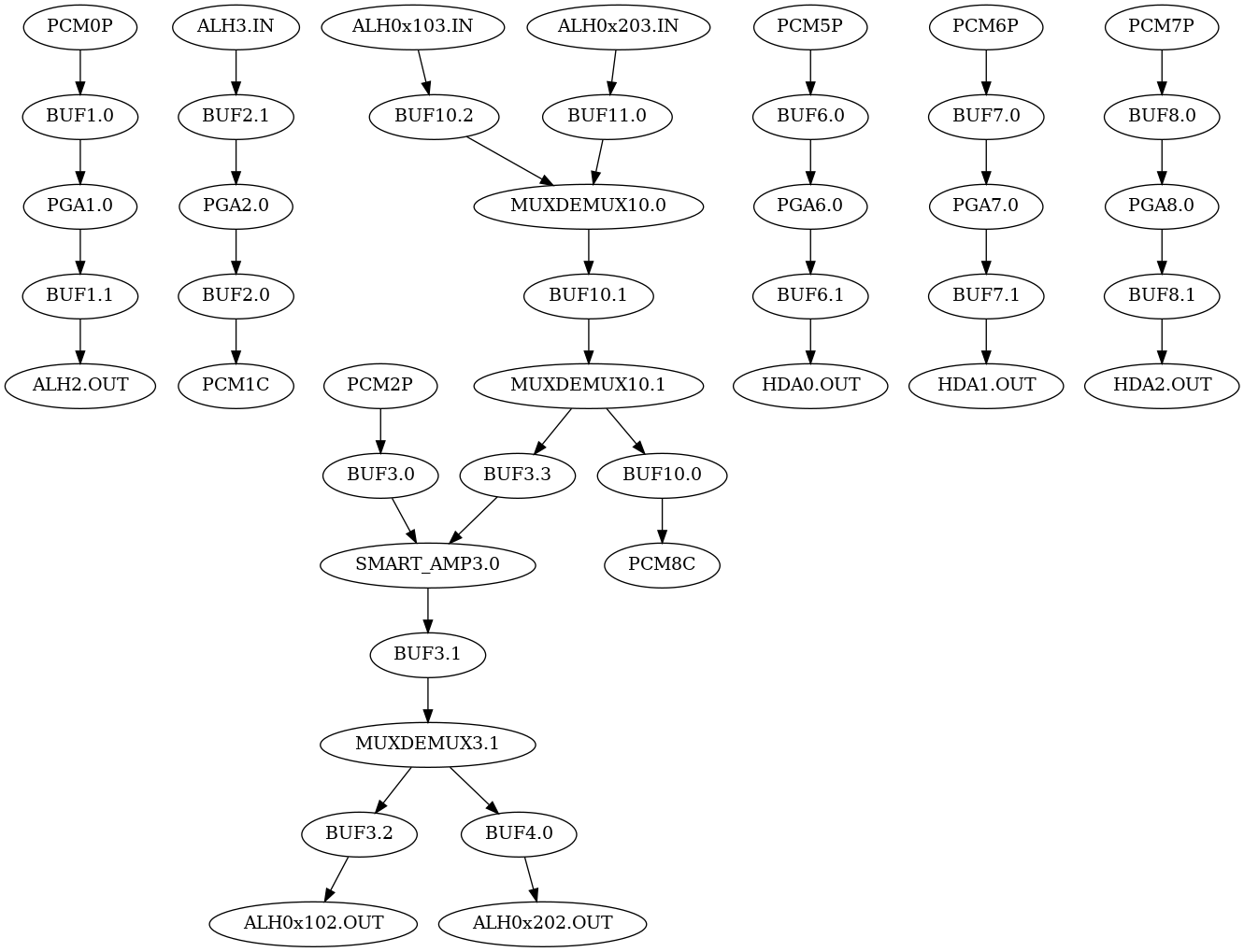

please check the attachment for the topology.
