[BUG][TGL]"Input/output error" occurred when do multiple-pipeline-playback test. #3177

Closed
Closed
[BUG][TGL]"Input/output error" occurred when do multiple-pipeline-playback test.#3177
Labels
P1Blocker bugs or important featuresTGLApplies to Tiger LakebugSomething isn't working as expected

Description

@Liviali155
Liviali155
opened on Jul 14, 2020

Describe the bug

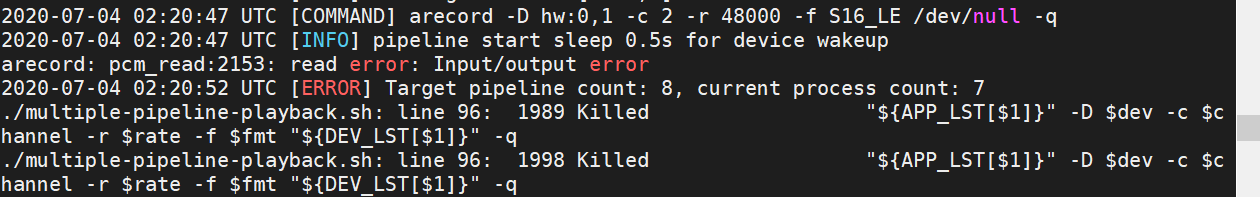

"Input/output error" occurred when do multiple-pipeline-playback test.
after error occured,all the pipeline can work

To Reproduce
1.sudo reboot
2.cd sof-test
3.cd test-case
4.export TPLG=sof-tgl-max98357a-rt5682.tplg
5../multiple-pipeline-playback.sh -c 8 -l 300

Reproduction Rate
Failed at 2th when arecord via headset(0,1)

Expected behavior
No error occured

Impact
"Input/output error when arecord via headset(0,1),"dmesg show error: ipc error for 0x60050000 size 12

Capture

ubuntu@ubuntu-Volteer:~/sof-test/test-case$ arecord -l
**** List of CAPTURE Hardware Devices ****
card 0: sofrt5682 [sof-rt5682], device 1: Headset (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: sofrt5682 [sof-rt5682], device 6: EchoRef (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: sofrt5682 [sof-rt5682], device 99: DMIC48kHz (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: sofrt5682 [sof-rt5682], device 100: DMIC16k (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
dmesg_error.log
[   85.543221] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60050000: GLB_STREAM_MSG: TRIG_STOP
[   85.543359] sof-audio-pci 0000:00:1f.3: error: ipc error for 0x60050000 size 12
[   85.543881] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[   85.543893] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x340000 successful
[   85.543898]  Headset: ASoC: trigger FE cmd: 0 failed: -22
[   85.543900] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[   85.543914]  Headset: ASoC: hw_free FE Headset
[   85.543918] sof-audio-pci 0000:00:1f.3: pcm: free stream 1 dir 1
[   85.543923] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60030000: GLB_STREAM_MSG: PCM_FREE
[   85.544069] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x6003000
sof_error.log
239583) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1537 ERROR dmic_irq_handler(): full fifo A or PDM overrun
[177856006.875000] (        8.072917) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1533 dmic_irq_handler(), OUTSTAT0 = 536870912
[177856014.531250] (        7.656250) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1534 dmic_irq_handler(), OUTSTAT1 = 2147483648
[177856024.531250] (       10.000000) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1533 dmic_irq_handler(), OUTSTAT0 = 671088640
[177856032.083333] (        7.552083) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1534 dmic_irq_handler(), OUTSTAT1 = 2147483648
[177856039.375000] (        7.291667) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1537 ERROR dmic_irq_handler(): full fifo A or PDM overrun
[177856047.447917] (        8.072917) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1533 dmic_irq_handler(), OUTSTAT0 = 536870912
[177856055.052083] (        7.604167) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1534 dmic_irq_handler(), OUTSTAT1 = 2147483648
[177856065.052083] (       10.000000) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1533 dmic_irq_handler(), OUTSTAT0 = 671088640
[177856072.395833] (        7.343750) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1534 dmic_irq_handler(), OUTSTAT1 = 2147483648
[177856079.843750] (        7.447917) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1537 ERROR dmic_irq_handler(): full fifo A or PDM overru
Branch name and commit hash of the 2 repositories: sof (firmware/topology) and linux (kernel driver). Kernel: Kernel:https://github.com/thesofproject/linux/commits/topic/sof-dev (commit: 1b2f260)

PR#2208 for DP fix
PR#2184 for wov S0i2
+PR#2238 for max98373-sdw jack switch
codec hack commit to verify this captured data.
revert regression on USB-C 6a7c533 for volteer
revert d4b41f8bb
revert regression on PINCTRL cd0a323 for volteer
SOF: https://github.com/thesofproject/sof/tree/tgl-007-drop-stable v7.0-rc6,commit: a40b46c
PR#3116 for KWD trigger volume
Name of the topology file
Topology: sof-tgl-max98357a-rt5682.tplg
Name of the platform(s) on which the bug is observed.
Platform: TGL chromebook with codec 98357 in I2S mode

dmesg0707.log
sof-logger_0707.log

Activity

  1. Liviali155
    added
    bugSomething isn't working as expected
    TGLApplies to Tiger Lake
    P1Blocker bugs or important features
    on Jul 14, 2020

  2. Liviali155 commented on Jul 14, 2020

    @Liviali155
    Liviali155
    on Jul 14, 2020
    Author

    on TGL chromebook with codec 98357 in I2S mode
    issue also can be reproduced in below scenerios

    scenerio 1:
    when do pause/release of speaker playbak&dmic capture
    scenerio 2:
    export TPLG=sof-tgl-max98357a-rt5682.tplg
    ./multiple-pause-resume.sh -r 100 (https://github.com/thesofproject/sof-test/blob/master/test-case/multiple-pause-resume.sh)

  3. Liviali155 commented on Jul 14, 2020

    @Liviali155
    Liviali155
    on Jul 14, 2020
    Author

    Issue also can be reproduced on TGL chromebook in SDW mode with codec 98373 when run multipipeline with https://github.com/thesofproject/sof/commits/releases/tgl/v7.0-rc7 ,commit: 33cfa90

    Issue can not be reproduced with FW:https://github.com/thesofproject/sof/tree/tgl-007-drop-stable v7.0-rc6,commit: a40b46c + PR#3116 for KWD trigger volume

    1.sudo reboot
    2.cd sof-test
    3.cd test-case
    4.export TPLG=sof-tgl-sdw-max98373-rt5682.tplg
    5../multiple-pipeline-playback.sh -c 9 -l 300

    Failed at 1th when arecord via dmic (0,4)
    Capture

    sof_error.log
    0 dai          3.17           src/audio/dai.c:736  dai_config() dai type = 4 index = 258
[145318319.010417] (   596156.125000) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1533 dmic_irq_handler(), OUTSTAT0 = 671088640
[145318343.906250] (       24.895834) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1534 dmic_irq_handler(), OUTSTAT1 = 2147483648
[145318367.552083] (       23.645834) c0 dmic-dai     2.0   src/drivers/intel/dmic.c:1537 ERROR dmic_irq_handler(): full fifo A or PDM overrun
[145318392.864583] (       25.312500) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1533 dmic_irq_handler(), OUTSTAT0 = 671088640
[145318417.552083] (       24.687500) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1534 dmic_irq_handler(), OUTSTAT1 = 2147483648
[145318441.145833] (       23.593750) c0 dmic-dai     2.1   src/drivers/intel/dmic.c:1537 ERROR dmic_irq_handler(): full fifo A or PDM overrun
[145318773.958333] (      332.812500) c0 hda-dma            ..../intel/hda/hda-dma.c:790  ERROR hda_dma_link_check_xrun(): underrun detected
[145319395.520833] (      621.562500) c0 hda-dma            ..../intel/hda/hda-dma.c:790  ERROR hda_dma_link_check_xrun(): underrun detected
[145319989.843750] (      594.322937) c0 hda-dma            ..../intel/hda/hda-dma.c:790  ERROR hda_dma_link_check_xrun(): underrun detected
[145320307.447917] (      317.604156) c0 hda-dma            ..../intel/hda/hda-dma.c:790  ERROR hda_dma_link_check_xrun(): underrun detected
[145320430.104167] (      122.656250) c0 ll-schedule        /schedule/timer_domain.c:35   ERROR
    dmesg_error.log
    Volteer-rt5682-max98373-i2s kernel: [   72.400283] rt5682 sdw:0:25d:5682:0: rt5682_clock_config complete, clk_freq=4800000
Volteer-rt5682-max98373-i2s kernel: [   72.400824] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x2034001e successful
Volteer-rt5682-max98373-i2s kernel: [   72.404536] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x24001e successful
Volteer-rt5682-max98373-i2s kernel: [   73.322150] sof-audio-pci 0000:00:1f.3: error: ipc timed out for 0x60040000 size 12
Volteer-rt5682-max98373-i2s kernel: [   73.322153] sof-audio-pci 0000:00:1f.3: info: preventing DSP entering D3 state to preserve context
Volteer-rt5682-max98373-i2s kernel: [   73.322197] sof-audio-pci 0000:00:1f.3: status: fw entered - code 00000005
Volteer-rt5682-max98373-i2s kernel: [   73.322945] sof-audio-pci 0000:00:1f.3: error: unexpected fault 0x00000000 trace 0x00004000
Volteer-rt5682-max98373-i2s kernel: [   73.322995] sof-audio-pci 0000:00:1f.3: error: hda irq intsts 0x00000000 intlctl 0xc0001f8f rirb 00
Volteer-rt5682-max98373-i2s kernel: [   73.323035] sof-audio-pci 0000:00:1f.3: error: dsp irq ppsts 0x00000000 adspis 0x00000000
Volteer-rt5682-max98373-i2s kernel: [   73.323040] sof-audio-pci 0000:00:1f.3: error: host status 0x00000000 dsp status 0x00000000 mask 0x00000003
Volteer-rt5682-max98373-i2s kernel: [   73.323041] sof-audio-pci 0000:00:1f.3: error: waking up any trace sleepers
Volteer-rt5682-max98373-i2s kernel: [   73.323088] sof-audio-pci 0000:00:1f.3: error: trace IO error
Volteer-rt5682-max98373-i2s kernel: [   73.323093]  Headset mic: ASoC: trigger FE cmd: 1 failed: -110
Volteer-rt5682-max98373-i2s kernel: [   73.826167] sof-audio-pci 0000:00:1f.3: error: ipc timed out for 0x60050000 size 12
Volteer-rt5682-max98373-i2s kernel: [   73.826210] sof-audio-pci 0000:00:1f.3: info: preventing DSP entering D3 state to preserve context
Volteer-rt5682-max98373-i2s kernel: [   73.826213] sof-audio-pci 0000:00:1f.3: status: fw entered - code 00000005
Volteer-rt5682-max98373-i2s kernel: [   73.826985] sof-audio-pci 0000:00:1f.3: error: unexpected fault 0x00000000 trace 0x00004000
Volteer-rt5682-max98373-i2s kernel: [   73.827032] sof-audio-pci 0000:00:1f.3: error: hda irq intsts 0x00000000 intlctl 0xc0001f8f rirb 00
Volteer-rt5682-max98373-i2s kernel: [   73.827033] sof-audio-pci 0000:00:1f.3: error: dsp irq ppsts 0x00000000 adspis 0x00000000
Volteer-rt5682-max98373-i2s kernel: [   73.827039] sof-audio-pci 0000:00:1f.3: error: host status 0x00000000 dsp status 0x00000000 mask 0x00000003
Volteer-rt5682-max98373-i2s kernel: [   73.827040] sof-audio-pci 0000:00:1f.3: error: waking up any trace sleepers
Volteer-rt5682-max98373-i2s kernel: [   73.827619] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x20340000 successful

    dmesg.txt
    slogger.txt

  4. Liviali155 commented on Jul 14, 2020

    @Liviali155
    Liviali155
    on Jul 14, 2020
    Author

    Error also seen on i2s 5682-max08373

  5. Liviali155 commented on Jul 17, 2020

    @Liviali155
    Liviali155
    on Jul 17, 2020
    Author

    Error not seen with https://github.com/thesofproject/sof/commits/releases/tgl/v7.0-rc10 ,commit: fb801c8 +https://github.com/thesofproject/linux/tree/tgl-007-20200716
    on below platforms
    i2s 5682-max08373
    chromebook in SDW mode with codec 98373

    closed it

  6. Liviali155
    closed this as completedon Jul 17, 2020
