[BUG][ICL] DMIC I/O error when doing pause 4ch arecord then resume #1731

Closed
Closed
[BUG][ICL] DMIC I/O error when doing pause 4ch arecord then resume#1731
Labels
HDAApplies to HD-Audio bus for codec connectionICLApplies to IceLake platformbugSomething isn't working as expected

Description

@dengyangchao
dengyangchao
opened on Aug 20, 2019

Describe the bug
Pause arecord then resume, wait 5s, system shows I/O error

More info
when connecting DP or HDMI issue can not reproduce

To Reproduce

1.Arecord via "arecord -Dhw:0,6 -r48000 -c4 -fs16_le 1.wav -vv -i"
2.Pause arecord
3.Resume arecord
4.Wait 5s

Reproduction Rate
100%

Expected results
Resume playback normally after pause-release

Actual result
I/O error

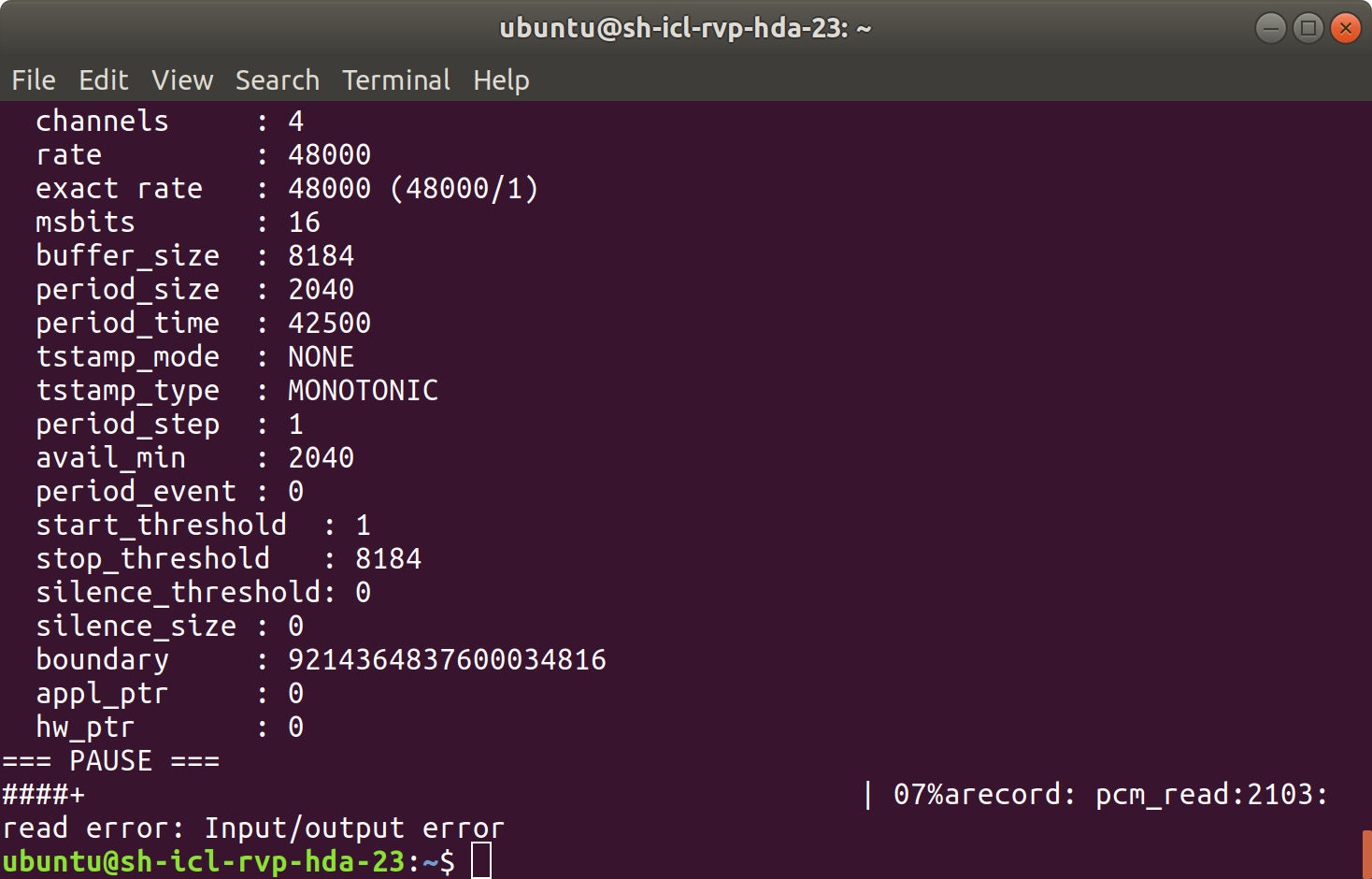

Screenshot from 2019-08-20 07-27-12

Environment
Firmware: 5476ed7 https://github.com/thesofproject/sof/commits/master
Kernel: a600576 https://github.com/thesofproject/linux/commits/topic/sof-dev
Topology: file: tools/topology/sof-hda-generic-4ch.tplg same as firmware
platform：ICL-RVP

dmesg

[  718.124732] sof-audio-pci 0000:00:1f.3: pcm: open stream 6 dir 1
[  718.124733] sof-audio-pci 0000:00:1f.3: period min 192 max 16384 bytes
[  718.124734] sof-audio-pci 0000:00:1f.3: period count 2 max 16
[  718.124735] sof-audio-pci 0000:00:1f.3: buffer max 65536 bytes
[  718.124871] sof-audio-pci 0000:00:1f.3: pcm: hw params stream 6 dir 1
[  718.124872] sof-audio-pci 0000:00:1f.3: generating page table for 000000000840c015 size 0xffc0 pages 16
[  718.124915] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x40000 successful
[  718.124955] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x40000 successful
[  718.124971] sof-audio-pci 0000:00:1f.3: period_bytes:0x3fc0
[  718.124972] sof-audio-pci 0000:00:1f.3: periods:4
[  718.125013] sof-audio-pci 0000:00:1f.3: stream_tag 2
[  718.125016] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60010000: GLB_STREAM_MSG: PCM_PARAMS
[  718.125586] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x60010000: GLB_STREAM_MSG: PCM_PARAMS
[  718.125595] sof-audio-pci 0000:00:1f.3: pcm: stream dir 1, posn mailbox offset is 790528
[  718.125623] sof-audio-pci 0000:00:1f.3: nothing to do in IPC IRQ thread
[  718.127027] sof-audio-pci 0000:00:1f.3: pcm: trigger stream 6 dir 1 cmd 1
[  718.127055] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x2024001e successful
[  718.127056] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60040000: GLB_STREAM_MSG: TRIG_START
[  718.127473] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x60040000: GLB_STREAM_MSG: TRIG_START
[  718.617356] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[  718.617403] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[  719.117691] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[  719.117735] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[  725.630584] sof-audio-pci 0000:00:1f.3: pcm: trigger stream 6 dir 1 cmd 3
[  725.630611] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x20240000 successful
[  725.630620] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60060000: GLB_STREAM_MSG: TRIG_PAUSE
[  725.631011] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x60060000: GLB_STREAM_MSG: TRIG_PAUSE
[  726.617358] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[  726.617396] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[  749.418518] sof-audio-pci 0000:00:1f.3: pcm: trigger stream 6 dir 1 cmd 4
[  749.418547] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x2024001e successful
[  749.418549] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60070000: GLB_STREAM_MSG: TRIG_RELEASE
[  749.419023] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x60070000: GLB_STREAM_MSG: TRIG_RELEASE
[  750.117344] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[  750.117393] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[  751.617923] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[  751.617973] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[  752.033241] sof-audio-pci 0000:00:1f.3: pcm: trigger stream 6 dir 1 cmd 0
[  752.033369] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x20240000 successful
[  752.033383] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60050000: GLB_STREAM_MSG: TRIG_STOP
[  752.033615] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x60050000: GLB_STREAM_MSG: TRIG_STOP
[  752.033621] sof-audio-pci 0000:00:1f.3: ipc tx: 0x60030000: GLB_STREAM_MSG: PCM_FREE
[  752.033828] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x60030000: GLB_STREAM_MSG: PCM_FREE
[  752.034074] sof-audio-pci 0000:00:1f.3: pcm: close stream 6 dir 1
[  752.380688] sof-audio-pci 0000:00:1f.3: ipc rx: 0x90020000: GLB_TRACE_MSG
[  752.380738] sof-audio-pci 0000:00:1f.3: ipc rx done: 0x90020000: GLB_TRACE_MSG
[  754.282507] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x20140000 successful
[  754.330475] sof-audio-pci 0000:00:1f.3: ipc tx: 0x40010000: GLB_PM_MSG: CTX_SAVE
[  754.330724] sof-audio-pci 0000:00:1f.3: ipc tx succeeded: 0x40010000: GLB_PM_MSG: CTX_SAVE
[  754.330803] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0x1010f0f successful
[  754.330815] sof-audio-pci 0000:00:1f.3: FW Poll Status: reg=0xf0f successful
[  754.330817] sof-audio-pci 0000:00:1f.3: DSP core(s) enabled? 0 : core_mask f
[  754.330857] sof-audio-pci

dmesg.log
logger.log

Activity

  1. dengyangchao
    added
    bugSomething isn't working as expected
    on Aug 20, 2019
  2. ClarexZhou
    added
    HDAApplies to HD-Audio bus for codec connection
    ICLApplies to IceLake platform
    on Aug 20, 2019
  3. ClarexZhou
    changed the title [-][BUG][ICL] DMIC I/O error when doing pause arecord then resume[/-] [+][BUG][ICL] DMIC I/O error when doing pause 4ch arecord then resume[/+] on Aug 20, 2019

  4. dengyangchao commented on Aug 21, 2019

    @dengyangchao
    dengyangchao
    on Aug 21, 2019
    Author

    issue still can reproduce, but can not reproduce when connecting DP or HDMI

    to Reproduce

    1. Both DP and HDMI are not connected. Reboot system via "sudo reboot" and wait it to suspend status
      2.Arecord via "arecord -Dhw:0,6 -r48000 -c4 -fs16_le 1.wav -vv -i"
      3.Pause arecord
      4.Resume arecord wait 10s -> Error can be reproduced
      Reproduce rate 100%

    More info
    After step 4: stop arecord and wait runtime PM status is suspend -> connect HDMI /DP -> repeat step 2, 3, 4 -> Error can't be reproduced anymore.
    But error still can reproduce once disconnect HDMI/DP.

    Error also cannot be reproduce via below steps if boot up with HDMI/DP connection:

    1. connect DP or HDMI, then reboot via "sudo reboot" and wait it to suspend status
    2. Arecord via "arecord -Dhw:0,6 -r48000 -c4 -fs16_le 1.wav -vv -i"
    3. Pause arecord
    4. Resume arecord wait 10s
    5. Repeat pause-release
      Issue can not reproduce

    Test recipe
    Firmware: db138eb https://github.com/thesofproject/sof/commits/master
    Kernel: 2a22b94 https://github.com/thesofproject/linux/commits/topic/sof-dev
    Topology: file: tools/topology/sof-hda-generic-4ch.tplg same as firmware
    platform：ICL-RVP

    dmesg.log
    dmesg_with_hdmi.log

  5. dabekjakub commented on Sep 9, 2019

    @dabekjakub
    dabekjakub
    on Sep 9, 2019
    Member

    duplicate of #1760

  6. dabekjakub
    closed this as completedon Sep 9, 2019
