[WHL][HDA] Unable to play using aplay #774
Description
Recipe:
platform: WHL RVP (HDA mode)
linux: Ubuntu 18
kernel (v5.0):
e29122d6 with latest kconfig repo. Kernel build using commands:
make defconfig
./scripts/kconfig/merge_config.sh .config $KCONFIG_PATH/base-defconfig $KCONFIG_PATH/sof-defconfig $KCONFIG_PATH/hdaudio-codecs-defconfig
make bindeb-pkg -j8
FW and topology:
master/a10e69d2 (from 28 March)
tplg file: sof-hda-generic.tplg
master/d7b36bf3 (from 2 April)
tplg file: sof-hda-generic.tplg
Description:
After booting linux OS with above kernel and for both FW, I checked dmesg: no errors. Then I checked sudo aplay -l which return properly 5 devices from topology.
but after execute:
sudo aplay -vv -Dhw:0,0 music.wav
I have output from aplay:
aplay: main:788: audio open error: Invalid argument
When I not used "sudo" I have errors from aplay:
> aplay -l
**** List of PLAYBACK Hardware Devices ****
ALSA lib conf.c:3545:(snd_config_hooks_call) Cannot open shared library libasound_module_conf_pulse.so (/usr/lib/alsa-lib/libasound_module_conf_pulse.so: libasound_module_conf_pulse.so: cannot open shared object file: No such file or directory)
ALSA lib control.c:1375:(snd_ctl_open_noupdate) Invalid CTL hw:0
aplay: device_list:279: control open (0): No such file or directory
I have never had these errors before.

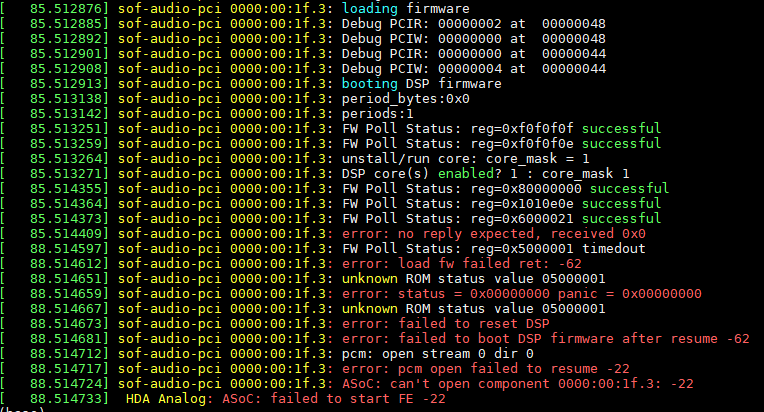

On dmesg I see that errors for both FW:
Logs:
dmesg.txt
Windows OS:
On python tests with diag driver there is no issue with FW.
- loading firmware ok
- basic playback and record on HDA (loopback on codec ALC700) - ok
- basic playback and record on SSP (loopback internal - using quirk) - ok
CML003 release:
There is no such errors on cml003 release (kernel, fw, tplg)
Activity
mengdonglin commentedon Apr 12, 2019
@emilchudzik We will share you a working recipe next Monday. Too many updates today
emilchudzik commentedon Apr 15, 2019
With this env I can play using aplay, but there is and issue with pulse audio. Please check: thesofproject/sof#1254 (comment)
Environment:
Platform: WHL RVP - HDA mode
Kernel:
2de29fa [thesofproject/linux: topic/sof-dev]
+d04ccf494 [RanderWang/linux: cml-validation-20190415]
+bfb0729dd [RanderWang/linux: cml-validation-20190415]
+8a2b13a81 [RanderWang/linux: cml-validation-20190415]
+63ceb8f68 [RanderWang/linux: cml-validation-20190415]
+db89510d0 [RanderWang/linux: cml-validation-20190415]
Firmware: 00bbb11 [thesofproject/sof: master]
Topology: 00bbb11 [thesofproject/sof: master] -> sof-hda-generic.tplg
wenqingfu commentedon Apr 18, 2019
original issue is gone. new symptom points to thesofproject/sof#1254
